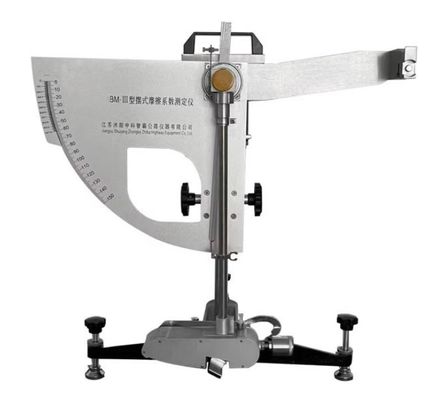

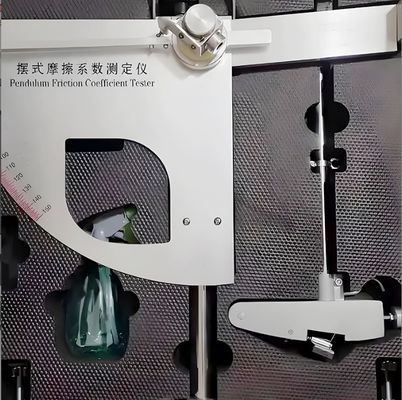

EN 13036-4 Pendulum Slip Resistance Tester
This product is primarily used for friction coefficient detection in high-grade highways, laboratories, and airport runways. It can also evaluate the anti-slip performance of rubber runways, floor tiles, and other materials requiring slip resistance assessment. The instrument can be used to determine the polishing value of test pieces after stone material accelerated polishing machine tests, and serves as the testing instrument for stone material accelerated polishing machines.
EN 13036-4
| Parameter | Specification |
|---|---|
| Weight of pendulum | 1500g ± 30g |
| Distance from center of gravity to end | 410mm ± 5mm |
| Normal static pressure of rubber slider | 22.2N ± 0.5N |
| Rubber sheet dimensions (road surface) | 6.35mm × 25.4mm × 76.2mm |
| Rubber sheet dimensions (coarse aggregate) | 31.75mm × 25.4mm × 6.35mm |
| Sliding length on road surface | 126mm ± 1mm |
| Distance from rubber sheet end to swing center | 510mm ± 2mm |
| Shore hardness of rubber sheet | 55 ± 5 |
