| ब्रांड नाम: | SKYLIE |
| मॉडल संख्या: | SL-P22 |
| मूक: | 1 |
| भुगतान की शर्तें: | एल/सी, डी/पी, डी/ए, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति की योग्यता: | 20-30 /महीना |

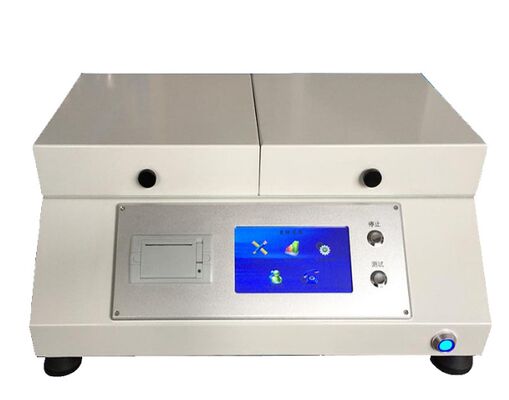

The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.

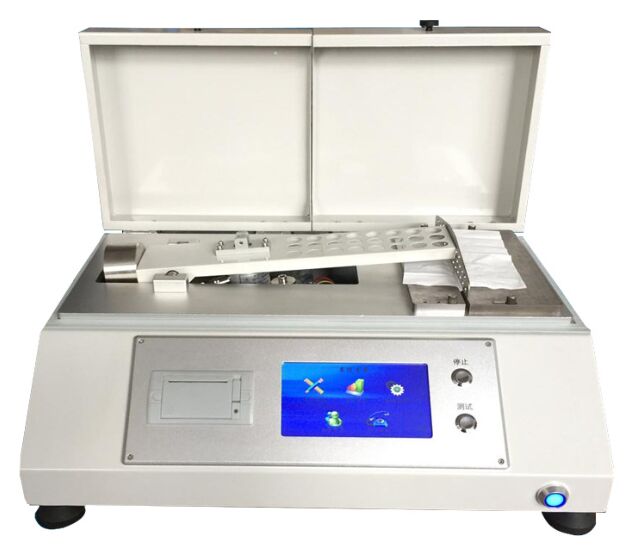

The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.
GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3
| Parameter | Specification |
|---|---|
| Measuring range | (10 ~ 1000) mN |
| Test speed | 1.2mm/s |
| Measurement time | 15s |
| Resolution | 1mN |
| Accuracy | ±1% |
| Probe penetration depth | 8 +0.5mm |
| Sample platform narrow width | 5mm, 6.35mm, 10mm, 20mm |
| Parallelism error on both sides of the sample table slit | ≤0.05mm |
| Display | 5-inch touch screen with curve display (50,000 hour lifespan) |
| Power supply | AC 220V ± 22V, 50Hz |
| Transport packaging | Wooden outer box with internal buffer material |
