EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing

EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing

ब्रांड नाम: SKYLINE
मॉडल संख्या: SL-F62
मूक: 1
कीमत: विनिमय योग्य
भुगतान की शर्तें: एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की योग्यता: 10 सेट/माह
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
CE, CO, Rosh, Form E, Calibrate Certificate...
पैकेजिंग विवरण:
निर्यात प्लाईवुड पैकेज
आपूर्ति की क्षमता:
10 सेट/माह
प्रमुखता देना:

EN 1149-3 Compliant Triboelectric Charging Decay Tester

,

Electrostatic Fieldmeter Protective Clothing Tester

,

PC Evaluation Software EN 1149-3 Tester

उत्पाद वर्णन
EN 1149-3 Triboelectric Charging Decay Tester for Protective Clothing
Professional testing equipment designed to determine the charging decay of protective clothing materials using the triboelectric charging method according to EN 1149-3 standard.

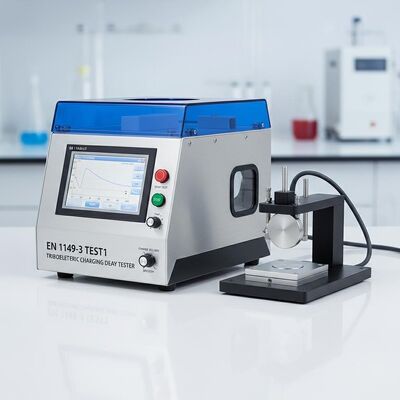

EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing 0 EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing 1
Introduction
The Triboelectric Charging Decay Tester is professionally designed to determine charging decay using the triboelectric charging method according to EN 1149-3. Test materials are charged by rubbing against cylindrical rods mounted on a vertically running slider. The electrical field strength from the charge generated on the test material is observed and recorded using an electrostatic fieldmeter connected to a graphical recording device.

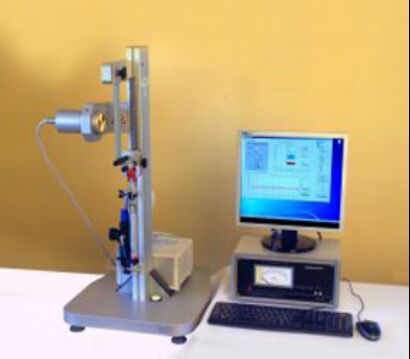

EN 1149-3 Compliant Triboelectric Charging Decay Tester with Electrostatic Fieldmeter and PC Evaluation Software for Protective Clothing 2
Test Standard
EN 1149-3
Key Features
  • Equipped with standard cylindrical rods and slider
  • Built-in tension meter provides precise loading on testing materials
  • Includes PC with evaluation software
Technical Specifications
Cylindrical rods Aluminum and HDPE
Field meter measuring range Up to 200kV/m
Response time <1ms
Loading pressure 1.3±0.05N
Speed 0.2±0.02m/s
Power supply 220V 50Hz-60 Hz
Dimensions 350mm×350mm×1070mm
Net weight 25 kg
